Loading Dock Lights

Why Proper Lighting Matters at the Dock

Loading dock lights play a key role in productive loading and unloading operations. They not only improve visibility but can also reduce accidents and prevent Occupational Safety and Health Administration (OSHA) violations. To maintain safe working conditions, OSHA has established lighting requirements for the following:

  • Illumination levels
  • Lighting intensity (lux level)
  • Maintenance
  • Emergency lighting (exit routes)
  • Shadows/glare

Loading bays and dock lights are essential to support proper handling and navigation. Reliable lights for a dock can significantly enhance trailer alignment and forklift operator precision, directly limiting “struck-by” injuries or slip-and-fall accidents. At Lighting Specialties, we provide loading dock lights to support ongoing compliance and improve operational workflow.

Types of Lights for a Dock We Offer

With over a century of experience, Lighting Specialties has a comprehensive selection of robust loading dock lights for industrial environments.

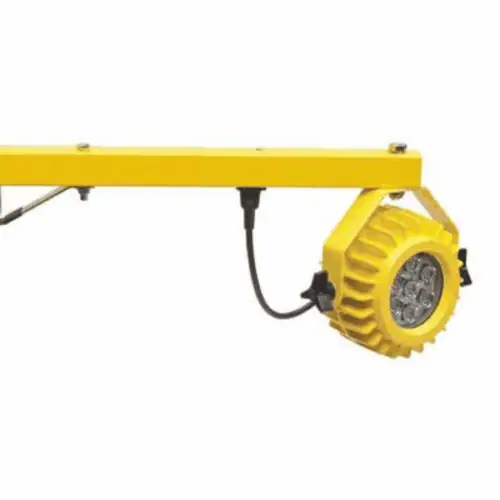

Tri Lite® Heavy-Duty LED Dock Lights

Tri Lite Heavy Duty LED Light Head

These heavy-duty LED lights are virtually indestructible and are ideal for use in wet environments. The rugged cast aluminum construction features a shatter-resistant polycarbonate lens cover to protect the IP66-rated light head from water spray and dust. The 18-watt LED offers a 60,000-hour lifespan while delivering light comparable to a 300-watt incandescent bulb.

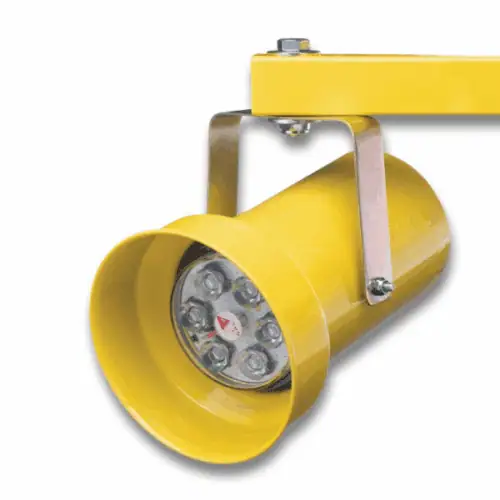

Tri Lite® Metal Head Dock Lights

Tri Lite Metal Head Dock Lights

We also offer Tri Lite® metal head dock lights featuring a durable metal construction.

The Tri Lite® Metal head lights come with an LED module integrated into the head or Incandescent Heads which include a wire guard and can be used with customer-supplied PAR 38 or R40 lamps up to 300 watt (not included). Either light head can be mounted on four different arm lengths from 24” to 114”.

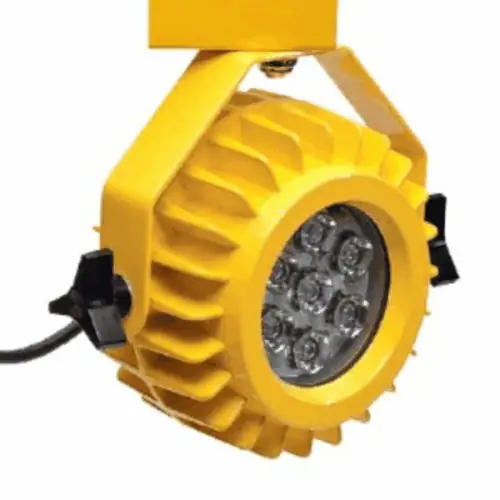

Tri Lite® Heavy-Duty LED Light Head

Tri Lite Heavy Duty LED Dock Lights

This heavy-duty light head features durable, compact heads with a lifespan of 60,000 hours. It is IP66-rated and NEMA 4-rated with a polycarbonate lens. The HDLED’s light intensity exceeds that of a 300-watt incandescent bulb while consuming 94% less energy than traditional incandescent lighting options.

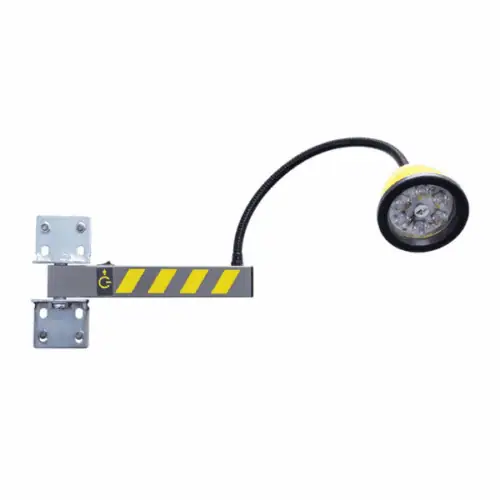

Tri Lite® Gooseneck Dock Light

Tri Lite Gooseneck Dock Light

The DL2GN gooseneck dock light prioritizes flexibility and light quality to meet unique operational challenges in industrial environments. The DL2GN has a 100,000-hour life expectancy with typical use and a 5-year warranty. It includes a US-made high-impact polycarbonate head with an optimized internal LED.

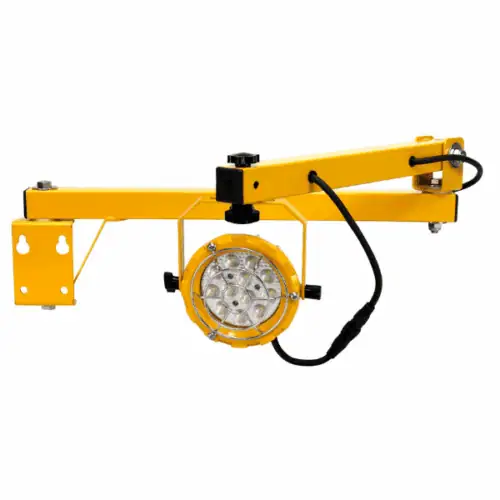

Fostoria Dock Light

Fostoria Loading Dock Lights

Fostoria dock lights come fully assembled (with the lamp included for all models except the incandescent models). They are 5’ long with a 120 V cordset and NEMA 15-5 grounded plug. DKLED units are IP65-rated for wet locations and include a die-cast aluminum light head with adjustable knobs. They offer a minimum lifespan of 50,000 hours and come with a 5-year warranty.

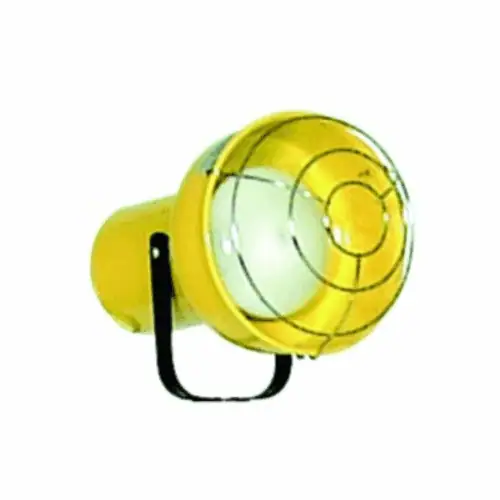

Fostoria Modular Light Head

Fostoria Incandescent Light Head

Fostoria dock light replacement heads are ETL-listed and available in four different lamp types:

  • Incandescent
  • 37-watt LED
  • LED
  • Quartz Halogen

A 14″ conductor cord plugs into an electrical junction box on the steel mounting arm, which is available in multiple arm styles and standard lengths of 24″, 40″, or 60″. Light heads can include a wire guard and an on/off switch, with optional 3-speed fans and other accessories also available.

Dock Light FAQs

Can these lights be used in outdoor or wet conditions?

Yes. Most industrial LED dock lighting is rated NEMA 4 or IP65-IP68 to ensure protection from dust, submersion, water jets, and wet conditions.

What is the lifespan of LED dock lighting?

LED dock fixtures can last between 25,000 and 60,000 hours, far exceeding fluorescent (≈15,000-hour lifespan) or incandescent (≈1,500-hour lifespan) options.

Are LED dock lights more energy-efficient than traditional bulbs?

Yes. LEDs can significantly reduce operating costs, consuming 80-90% less energy than halogen or incandescent bulbs while delivering the same lighting intensity.

What is the best IP rating for loading dock lights?

An IP65 rating ensures adequate protection from water jets and dusty environments. IP67/68 ratings are an ideal solution for outdoor or harsh industrial settings, with excellent submersion resistance.

How bright should my dock lights be?

Standard loading docks benefit from lighting fixtures with an output of 1,000 lumens per head or higher. Larger operations may require a higher output.

Are loading dock lights easy to install and maintain?

Yes. Most lights for a dock include adjustable arms and plug-and-play wiring. No special tools are required for installation, and routine maintenance includes checking seals and cleaning the lenses.

Durable Lights for Loading Docks by Lighting Specialties

At Lighting Specialties, our loading dock lights are designed to enhance safety, withstand industrial challenges, and ensure regulatory compliance. Our fixtures offer reliable performance and feature IP66/NEMA 4 ratings, with robust mounting systems and shielded heads to reduce glare. We offer several dock lighting options with long lifespans and 3,000 to 6,600 lumens, which effectively reduce maintenance and energy costs while complying with OSHA illumination requirements. Our options include LED dock lights, modular light heads and components, guide lights, signaling systems, and more.

Request a quote today for a tailored solution from Lighting Specialties that meets the specific demands of your next loading dock lighting project.
